Three-phase hybrid inverter
Hybrid inverter combining solar input, battery charging and discharging, generator input and backup output for small commercial microgrids. Published by Bescore as the OmniStax series, ES-29.9K-TP to ES-60K-TP.

OmniStax SeriesThree-phase hybrid inverter
- 01
- 29.9, 30, 40, 50 or 60 kW rated output
- 02
- Rated 50 Hz as published by Bescore; a 60 Hz version for the Philippine grid is not yet confirmed
- 03
- Solar input up to 100 kW; battery 150 to 900 V DC; generator input

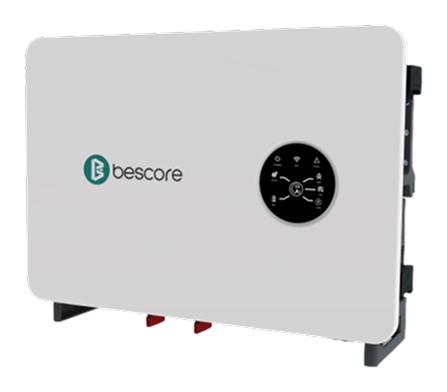

Figures as the principal publishes them. Product image for identification, not an installation.

What the storage system connects to.
A battery only earns its place through the equipment around it: the supply it charges from, the switchgear that isolates it, the loads it protects and the sources a controller must coordinate.

Power path
- Utility gridAbsent on an off-grid site.
- TransformerService transformer, or an isolation transformer for an island.

- Switchgear and transfer deviceIsolates the system and moves the site between grid and island.

- This productOmniStax SeriesStores energy as DC and delivers it through the PCS.

- Site loadsCritical loads first when the battery is the only source.
Other sources the controller coordinates
- SolarCharges the battery or serves load directly.
- Diesel generatorBackup, or the second source on an island.
- From the OmniStax SeriesDispatch rules decide which source serves which load.
From pack to power station, as the principal publishes them
Storage is built in steps. Each step adds energy, voltage and the equipment needed to connect it.
- Battery pack

14 kWh at 51.2 V DC. The building block.
- Battery rack

215 kWh at 768 V DC. Packs in series, fitted inside an enclosure.
- Cabinet system

105 kW with 215 kWh. Battery, PCS and controls in one outdoor cabinet.
- Battery compartment

Up to 5,016 kWh at 1,331.2 V DC. DC only; converts in a separate station.
- PCS and MV station

Up to 5,000 kW, stepped up to 10, 20 or 35 kV.
What the current reference supports.
These facts help determine whether the product deserves further review. They are not a complete compliance matrix or project approval.
Each fact is supported at the evidence level shown above (technical sheet available). Confirm the exact model code, option, revision and controlling terms of reference (TOR) before using any fact in a compliance statement, offer or installation decision.
One product identity. Five controlled evidence gates.
This schedule shows what the public record supports and what Metro Power must still match before the product becomes a technical or commercial commitment.
An image starts identification. Controlled evidence completes selection.
Where this product family may enter the system.
Application fit depends on the exact service, duty, operating objective and approved configuration. Use these as discovery prompts, not automatic recommendations.
What must be confirmed before an offer.
Capacity, savings and backup duration require validated interval load, site and operating data; monthly consumption alone is insufficient. Frequency, service voltage and the largest motor to be started are confirmed before any model is proposed.
Understand the complete system architecture ↗- 0112 months of bills and tariff
- 02Interval load data
- 03Critical loads and outage history
- 04Solar/generator details
- 05Single-line and transformer data
- 06Site, fire and interconnection constraints
From product interest to a controlled offer.
Requirement
Confirm the operating need, service, site and controlling specification.
Configuration
Match ratings, options, communications, interfaces and accessories.
Evidence
Check datasheet revision, compliance, certificates and confirmation gaps.
Offer gate
Release price and delivery only against the approved configuration.
Need the current datasheet or compliance evidence?
Metro Power will match the document revision, model and configuration to your requirement before release. Tell us the decision, TOR or application the document must support.
