BESS & Microgrids

BSC-CE2-0105K0215K-M2B0S

Microgrid ESS with solar input and grid switch

The CE2-105 platform with built-in solar charge controllers and a static transfer switch (STS), the device that moves a site between grid and island operation. Published by Bescore as the CE2-105PG.

POSSIBLE USEHybrid solar, diesel and storage microgridsA starting point for discussion, not an automatic recommendation.
WHAT WE CAN CONFIRM TODAYTechnical sheet availablePublished technical details are available. Metro Power will still confirm the exact model and project configuration.
FIRST PROJECT CHECK12 months of bills and tariffIf you do not know this yet, Metro Power can help identify what is needed.
Check if this fits my project ↗See what must be confirmed ↓Compare similar products ↗
BSC-CE2-0105K0215K-M2B0S, Studio view

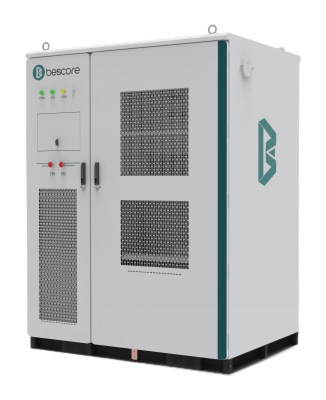

PRODUCT STUDIOBSC-CE2-0105K0215K-M2B0SProduct image from the available source. Confirm the exact model, ratings, dimensions and interfaces by document.
IMAGE REFERENCEManufacturer product renderThis image supports product identification. Metro Power confirms ratings, dimensions, interfaces and compliance using the applicable documents.
BESS & Microgrids

BSC-CE2-0105K0215K-M2B0SMicrogrid ESS with solar input and grid switch

01
105 kW with 215 kWh, or 100 kW with 200 kWh (BSC-CE2-0105K0200K-M2B0S)
02
Solar input of 2 x 55 kW (this model) or 4 x 55 kW (BSC-CE2-0105K0215K-M4B0S)
03
STS switching time of 20 ms or less, as stated on the datasheet

Figures as the principal publishes them. Product image for identification, not an installation.

BSC-CE2-0105K0215K-M2B0S, product image in monochrome
System context

What the storage system connects to.

A battery only earns its place through the equipment around it: the supply it charges from, the switchgear that isolates it, the loads it protects and the sources a controller must coordinate.

Evening view of containerized battery storage beside switchgear and a transformer
Illustrative setting Not a Metro Power installation or project record.

Power path

  1. Utility gridAbsent on an off-grid site.
  2. TransformerService transformer, or an isolation transformer for an island.
  3. Switchgear and transfer deviceIsolates the system and moves the site between grid and island.
  4. This productBSC-CE2-0105K0215K-M2B0SStores energy as DC and delivers it through the PCS.
  5. Site loadsCritical loads first when the battery is the only source.

Other sources the controller coordinates

  1. SolarCharges the battery or serves load directly.
  2. Diesel generatorBackup, or the second source on an island.
  3. From the BSC-CE2-0105K0215K-M2B0SDispatch rules decide which source serves which load.
PowerReal product photographDrawn: equipment Metro Power does not supply
Options and differences

From pack to power station, as the principal publishes them

Storage is built in steps. Each step adds energy, voltage and the equipment needed to connect it.

  • Battery pack

    14 kWh at 51.2 V DC. The building block.

  • Battery rack

    215 kWh at 768 V DC. Packs in series, fitted inside an enclosure.

  • Cabinet system

    105 kW with 215 kWh. Battery, PCS and controls in one outdoor cabinet.

  • Battery compartment

    Up to 5,016 kWh at 1,331.2 V DC. DC only; converts in a separate station.

  • PCS and MV station

    Up to 5,000 kW, stepped up to 10, 20 or 35 kV.

Known product facts

What the current reference supports.

These facts help determine whether the product deserves further review. They are not a complete compliance matrix or project approval.

01 105 kW with 215 kWh, or 100 kW with 200 kWh (BSC-CE2-0105K0200K-M2B0S)
02 Solar input of 2 x 55 kW (this model) or 4 x 55 kW (BSC-CE2-0105K0215K-M4B0S)
03 STS switching time of 20 ms or less, as stated on the datasheet
04 400 V AC, 50/60 Hz; IP55; aerosol and water fire protection

Each fact is supported at the evidence level shown above (technical sheet available). Confirm the exact model code, option, revision and controlling terms of reference (TOR) before using any fact in a compliance statement, offer or installation decision.

Internal architecture

What is inside the BSC-CE2-0105K0215K-M2B0S.

The blocks, the power path and the four signal buses, redrawn from the principal's published circuit diagram. It shows arrangement, not wiring; installation follows the controlled drawings.

Arrangement drawing

Inside the CE2-105PG microgrid cabinet

Redrawn by Metro Power from the circuit diagram Bescore publishes for the CE2-105PG. Principal's published figures.
SUPPLIED CABINET PV STRINGSCOMBINERSNOT SUPPLIEDMPPT 1MPPT 2M1M2M N-1M N···HV BOX+−PCSSTSLOADGRID SIDE, IMPLIEDBMUBMUBMUBMUBCMUEMUEXTERNALINTERFACEAIR CONFIREGENERATORHMIRS485SENSORACCESSE-STOPIOCAN
How to read it
  1. Two solar inputs enter through their own MPPT charge controllers on the DC side, beside the battery.
  2. The static transfer switch (STS) in front of the load moves the site between grid and island; the principal publishes 20 ms or less.
  3. An energy management unit (EMU) in the cabinet talks to the generator, cooling and fire system, and exposes one external interface for a site controller.
  4. Emergency stop and access are hard-wired inputs.
Key
  • DC power
  • AC power
  • CAN bus: battery data
  • RS485: auxiliaries
  • IO: hard-wired safety signals
  • LAN or Ethernet
  • Monitoring connection
  • Energy flow, shown when motion is allowed

BMU: battery management unit, one per module. BCMU: battery cluster management unit, one per string. HV box: DC contactors and fuses between the string and the converter.

The grid connection at the STS is implied on the principal's drawing and is shown dashed here. The combiner boxes and PV strings are outside the supplied scope.

Professional documentation

One product identity. Five controlled evidence gates.

This schedule shows what the public record supports and what Metro Power must still match before the product becomes a technical or commercial commitment.

ControlCurrent public recordProject release requirementStatus
IdentityBSC-CE2-0105K0215K-M2B0S · Microgrid ESS with solar input and grid switchExact model code, production revision and option scheduleTechnical sheet available
ApplicationThe CE2-105 platform with built-in solar charge controllers and a static transfer switch (STS), the device that moves a site between grid and island operation. Published by Bescore as the CE2-105PG.Approved service, duty, site and operating useApplication review
Technical facts105 kW with 215 kWh, or 100 kW with 200 kWh (BSC-CE2-0105K0200K-M2B0S) · Solar input of 2 x 55 kW (this model) or 4 x 55 kW (BSC-CE2-0105K0215K-M4B0S) · STS switching time of 20 ms or less, as stated on the datasheet · 400 V AC, 50/60 Hz; IP55; aerosol and water fire protectionControlled datasheet and requirement-by-requirement compliance matrixConfiguration check
Information to prepare12 months of bills and tariff · Interval load data · Critical loads and outage history · Solar/generator details · Single-line and transformer data · Site, fire and interconnection constraints · Service voltage and frequency (the Philippine grid is 60 Hz) · Existing solar: inverter make, rating and how it connects · The largest motor that must start in an island, with its starting current · Distance to the coast and exposure to salt airDrawings, terminals, communications, accessories and system interfacesEvidence required
Approval and supplyNot shown on this pageCurrent certificates, test records, principal confirmation, availability and deliveryRelease before offer
